주식회사 G-Mode



CDMA 800MHz Module
GMM-C810
Add to Basket Inquire now

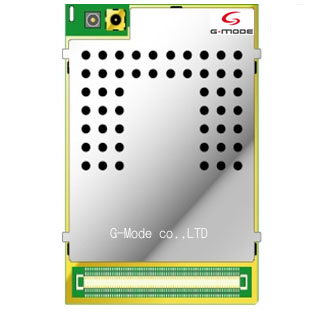

GMM-C810

Model:GMM-C810 -Features. CDMA 2000 1X (Qualcomm MSM6025) Flash 64Mbit, RAM 32Mbit Standard RS-232C interface DATA transmission up to 153Kbps IS-707 Standard AT command Up to 153.6Kbps data rate Built-in TCP/IP stack IS-707 PC FAX/Circuit Data /Packet data IS-637A 2-way SMS 13K QCELP/8K EVRC Color LCD/Keypad interface R-UIM interface -H/W Spec Full TIA/EIA/IS-98C Compliance Operating Voltage : 3.7V ~ 4.2V Max output power : 0.2 ~ 0.3 W Current consumption : 2mA under (sleep), up to 0.7A (Traffic) Sencitivity : -106dBm Receive frequency : 462.500MHz ~ 467.475MHz Transmit frequency : 452.500 ~ 457.475MHz -Diemension Size : 32.6mm × 48.0mm × 3mm 13.5g ( 0.48 oz) RF connector : MM9329-2700B,MM8430-2600 (MURATA) Interface : 100 pins(AXK6F00345YJ:NAIS) -Environmental Operating Temperature: -30 ~ +60 ° C Storage Temperature: -40 ~ +80 ° C Humidity (Operating): 0%~80% nonconcesing 35 ° C -100 Pin Interface Serial Data Interface(RS-232C) Keypad LCD Interface UIM Interface USB Interface E-jak Interface


button button button button


[ 연락처 정보 ]
icon Company 주식회사 G-Mode
icon Address 경기도 성남시 중원구 상대원동 5442-1 크란츠테크노 805호
(우:462729) 한국
icon Phone 82 - 031 - 7470917
icon Fax 82 - 031 - 7470415
icon Homepage http://www.g-mode.co.kr
icon Contact 김진범 / 상무
